gof_qq_plots

Description

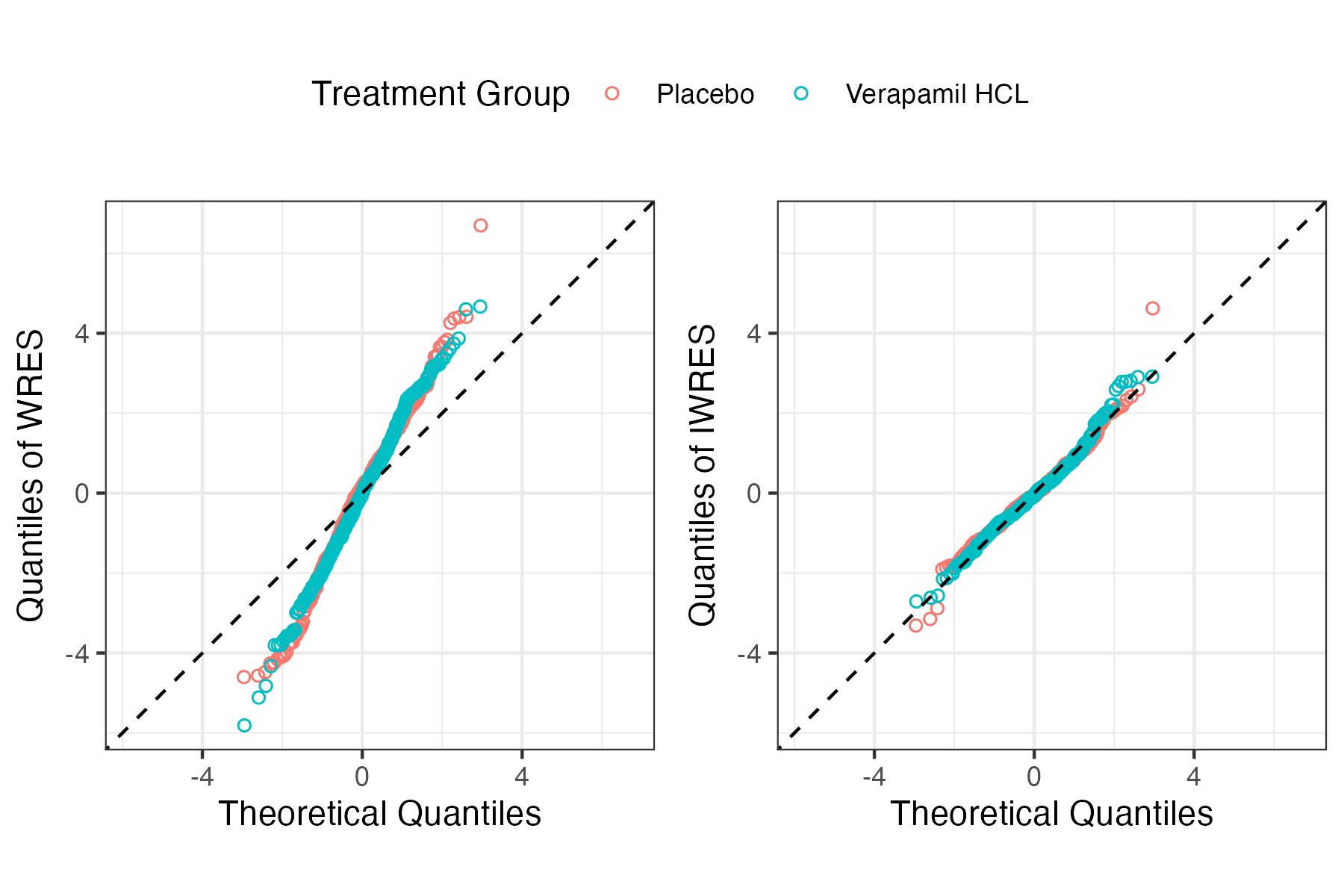

Plots QQ plot of WRES and IWRES

Usage

gof_qq_plots(
  data,
  fit,
  dv_col,
  conc_col,
  ntime_col,
  trt_col = NULL,
  title = "",
  legend_location = c(
  "top",
  "bottom",
  "left",
  "right",
  "none"
),
  legend_title = "Treatment Group"
)

Arguments

Name	Description
data	A dataframe of QTc dataset
fit	a deltaQTCF model fit
dv_col	an unquoted column name of deltaQTC/Dependent variable measurements
conc_col	an unquoted column name of concentration measurements
ntime_col	an unquoted column name of nominal times
trt_col	an unquoted column name of treatment group, default NULL
title	a string of title of plot
legend_location	location of legend ggpubr::ggarrange argument
legend_title	string for setting the legend title if trt_col is provided, default is Treatment Group

Returns

a plot

Examples

data <- preprocess(data)
 fit <- fit_prespecified_model(
   data,
   deltaQTCF,
   ID,
   CONC,
   deltaQTCFBL,
   TRTG,
   TAFD,
   "REML",
   TRUE
 )

 gof_qq_plots(data, fit, deltaQTCF, CONC, NTLD, TRTG, legend_location = "top")
