gof_concordance_plots

Description

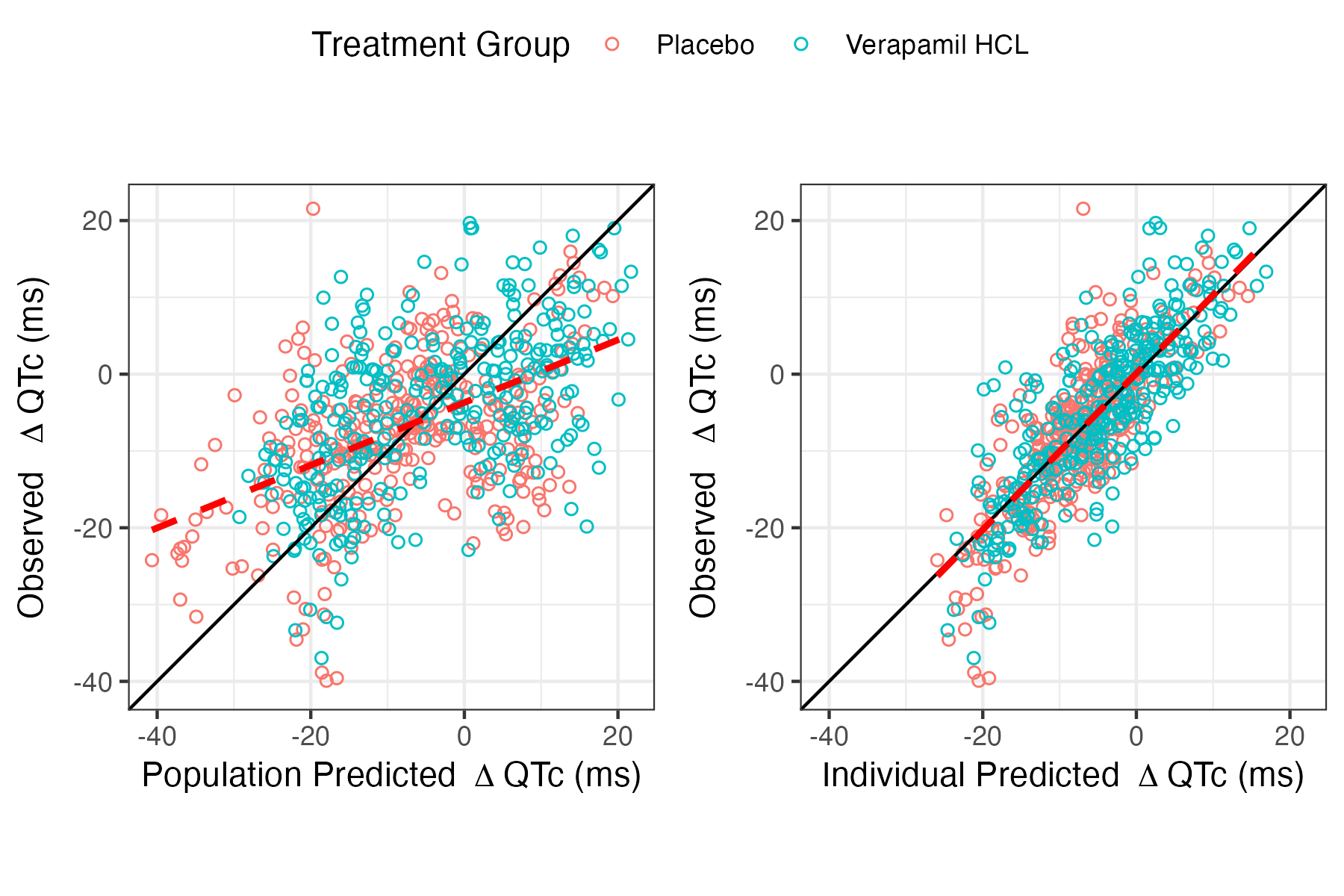

Concordance plots between population and individual predictions

Usage

gof_concordance_plots(
  data,
  fit,
  dv_col,
  conc_col,
  ntime_col,
  trt_col = NULL,
  title = NULL,
  dv_label = bquote(
  Delta ~ "QTc (
  ms
)"
),
  legend_location = c(
  "top",
  "bottom",
  "left",
  "right",
  "none"
),
  legend_title = "Treatment Group"
)

Arguments

Name	Description
`data`	A dataframe of QTc dataset
`fit`	a deltaQTCF model fit
`dv_col`	an unquoted column name of deltaQTC/Dependent variable measurements
`conc_col`	an unquoted column name of concentration measurements
`ntime_col`	an unquoted column name of nominal times
`trt_col`	an unquoted column name of treatment group, default NULL
`title`	a string of title of plot
`dv_label`	a string of dv label default bquote(Delta ~ ‘QTc (ms)‘)
`legend_location`	string for moving legend position.
`legend_title`	string for setting the legend title if trt_col is provided, default is Treatment Group

Returns

a plot

Examples

data <- preprocess(data)
 fit <- fit_prespecified_model(
   data,
   deltaQTCF,
   ID,
   CONC,
   deltaQTCFBL,
   TRTG,
   TAFD,
   "REML",
   TRUE
 )
 gof_concordance_plots(data, fit, deltaQTCF, CONC, NTLD, TRTG, legend_location = "top")
